Built in 2017 and engineered for efficient deployment in confined marine access environments, this fully transportable steel piling barge delivers a complete turnkey solution for jetty, pontoon, and marine piling operations.
Purpose-built for contractors requiring precision pile placement and rapid mobilisation, the system combines a compact transport footprint with powerful hydraulic functionality and a highly adaptable piling configuration. Designed for standalone operation, the barge is road transportable and capable of operating in locations where larger piling platforms cannot access.

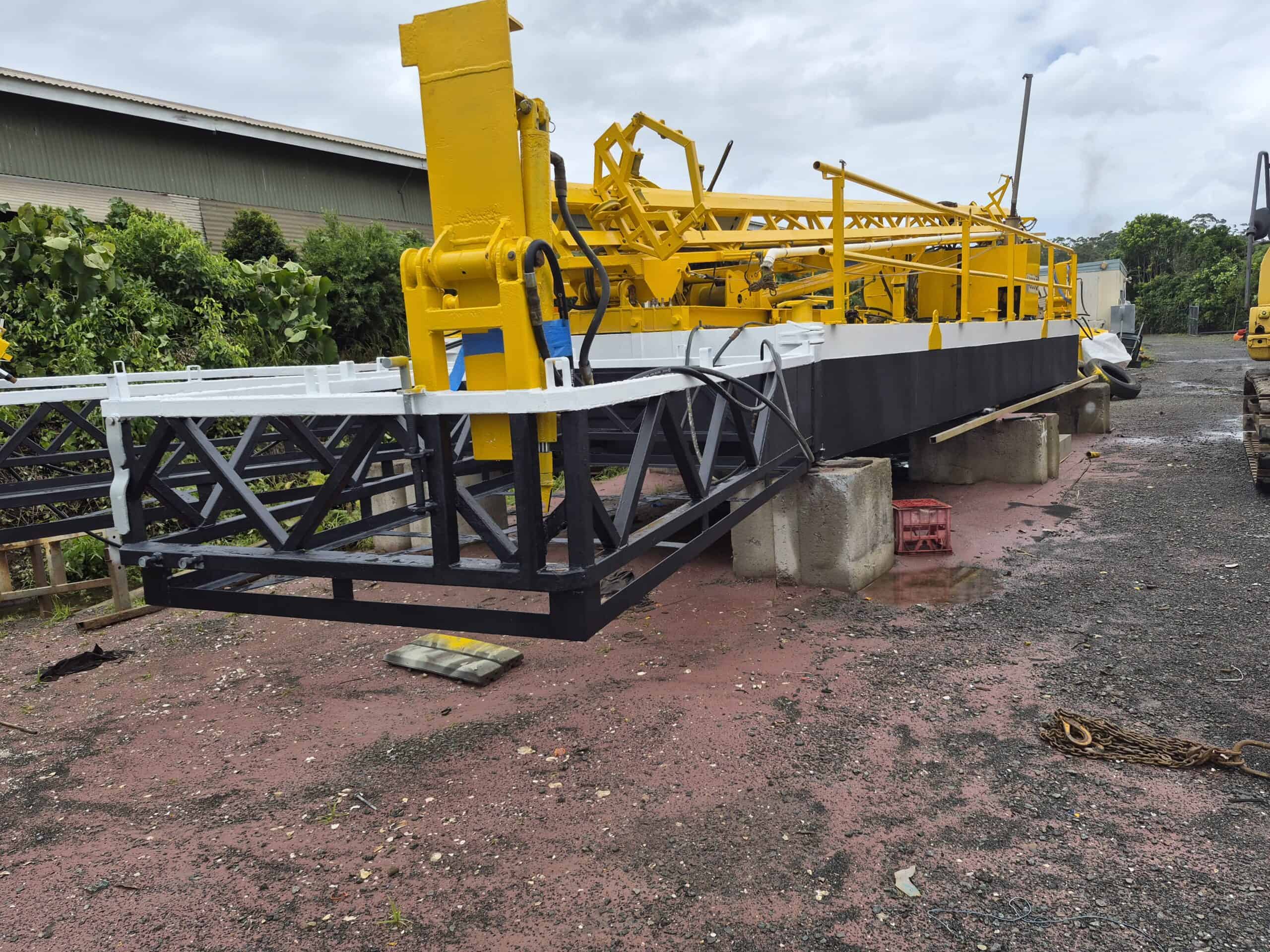

Its innovative T-shaped stabiliser configuration expands the working platform to a 6-metre-wide bow section, providing excellent operational stability during piling and drilling works.

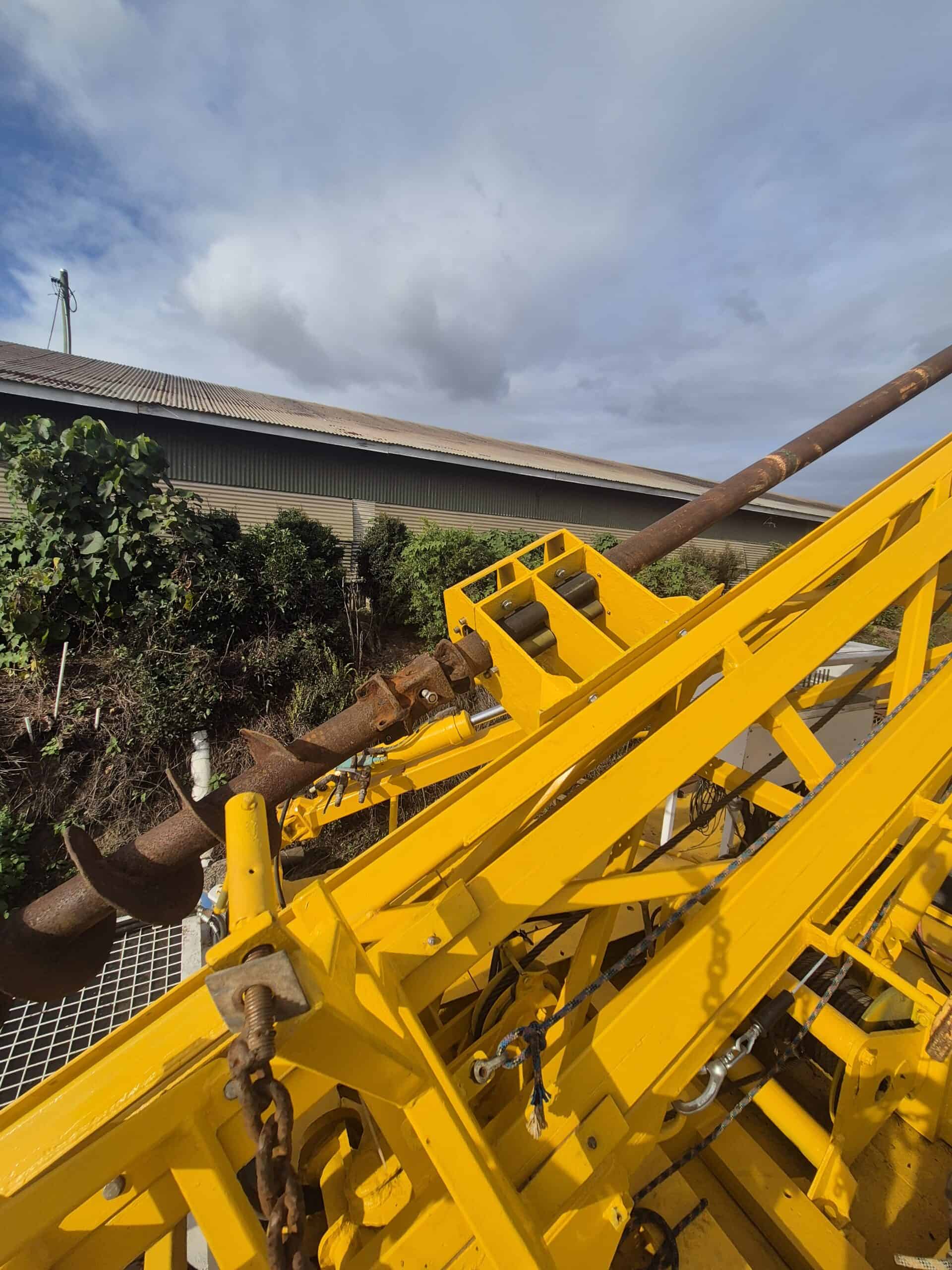

At the centre of the system is a fully hydraulic triangular piling frame engineered for accurate pile positioning across three axes using hydraulic articulation cylinders.
The integrated side slide rail system allows both the piling hammer and auger drive to travel precisely along the frame, significantly improving pile alignment and operational efficiency.
The piling package includes:
Hydraulically operated spud piles fold down for operation and retract for low-clearance transport and bridge access.
A rear-mounted Mercedes diesel engine powers a dual hydraulic pump system, separating auger drive functionality from auxiliary hydraulic operations including frame articulation, winch systems, and jetting functions.

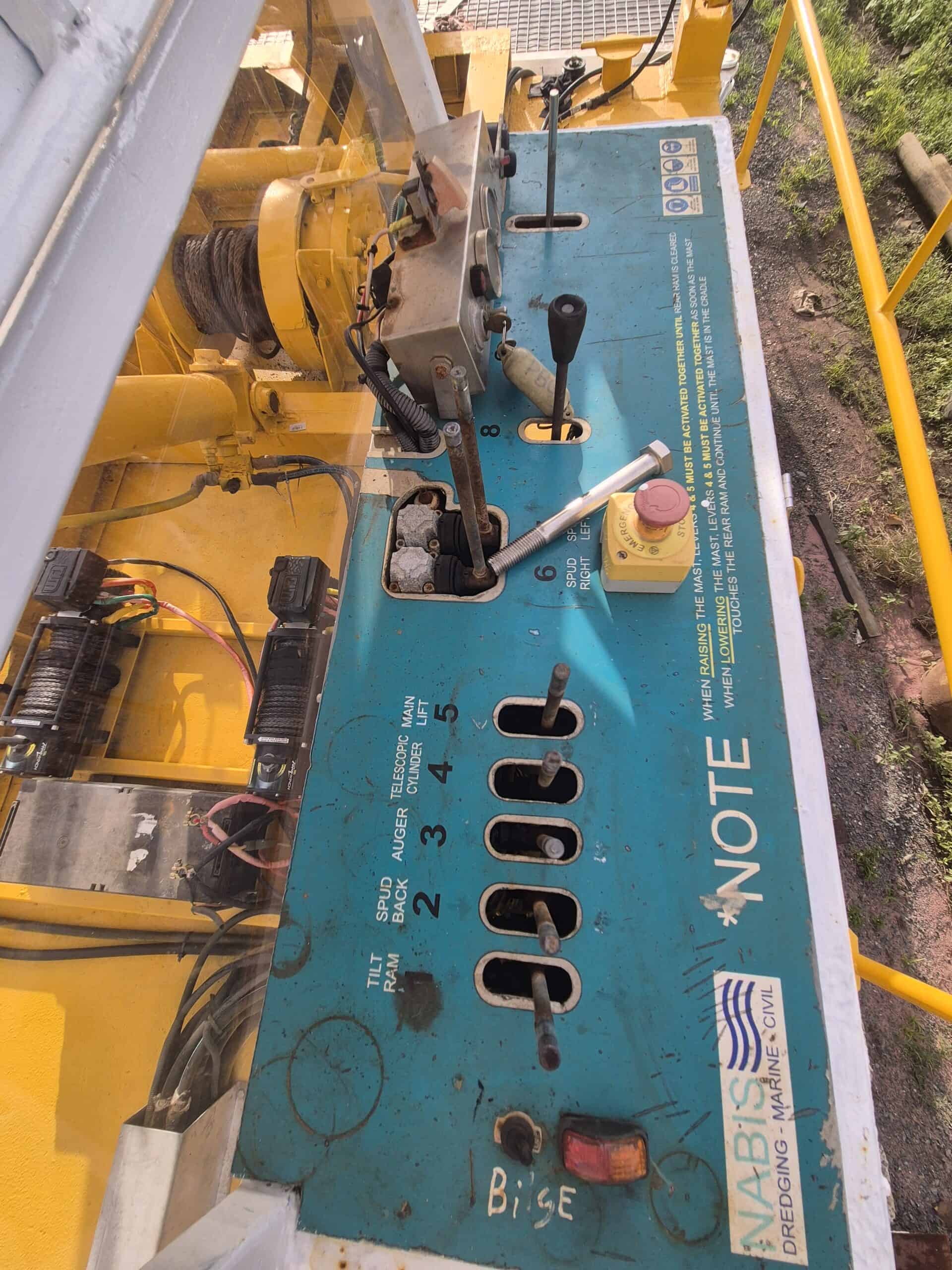

The operator control console is positioned at the starboard bow, providing excellent visibility for precise pile placement and drilling operations.

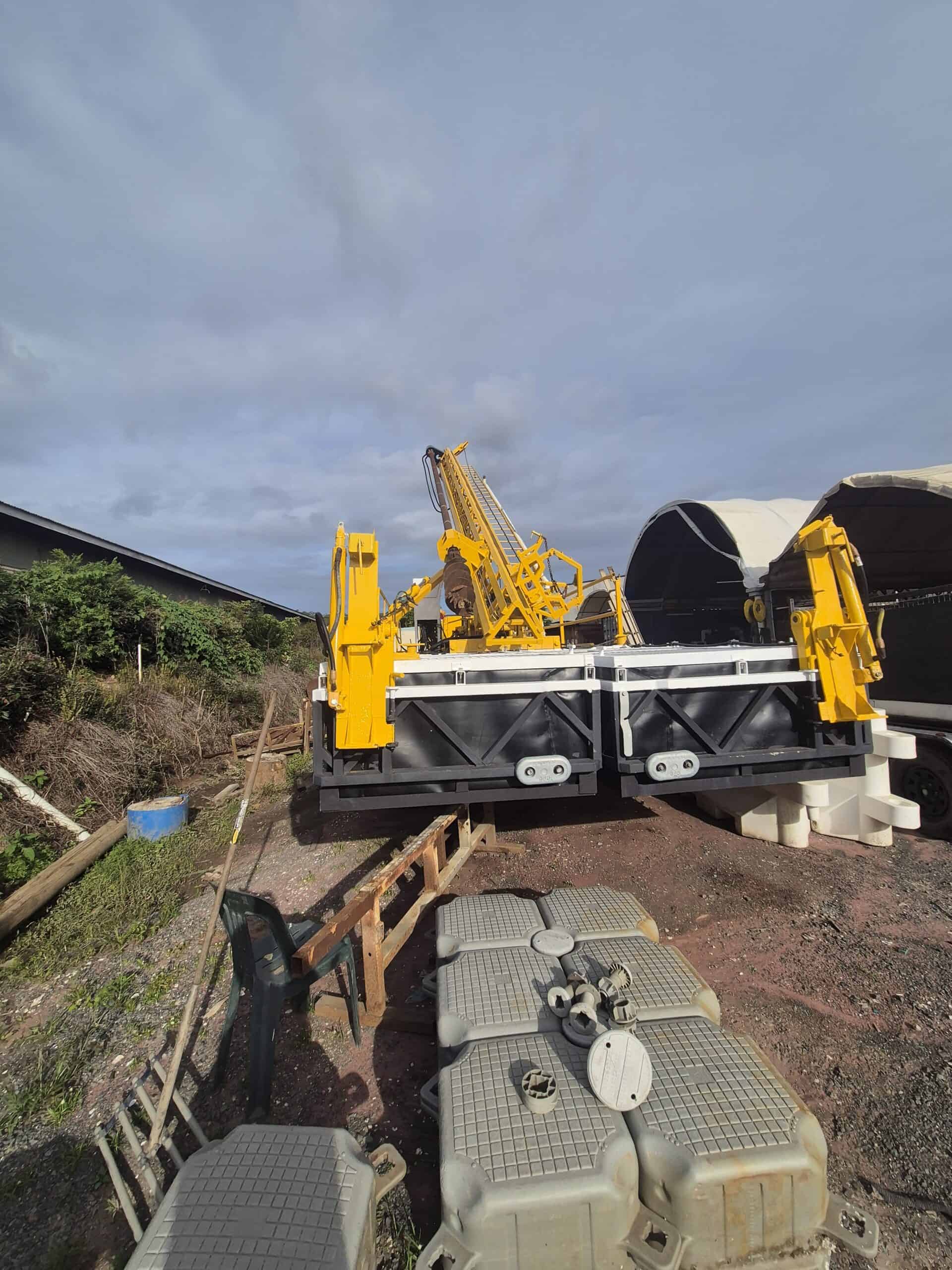

A 2,000-litre integrated counterweight tank enhances stability under operational loads, while the 100-litre diesel capacity provides extended runtime exceeding five operational days.

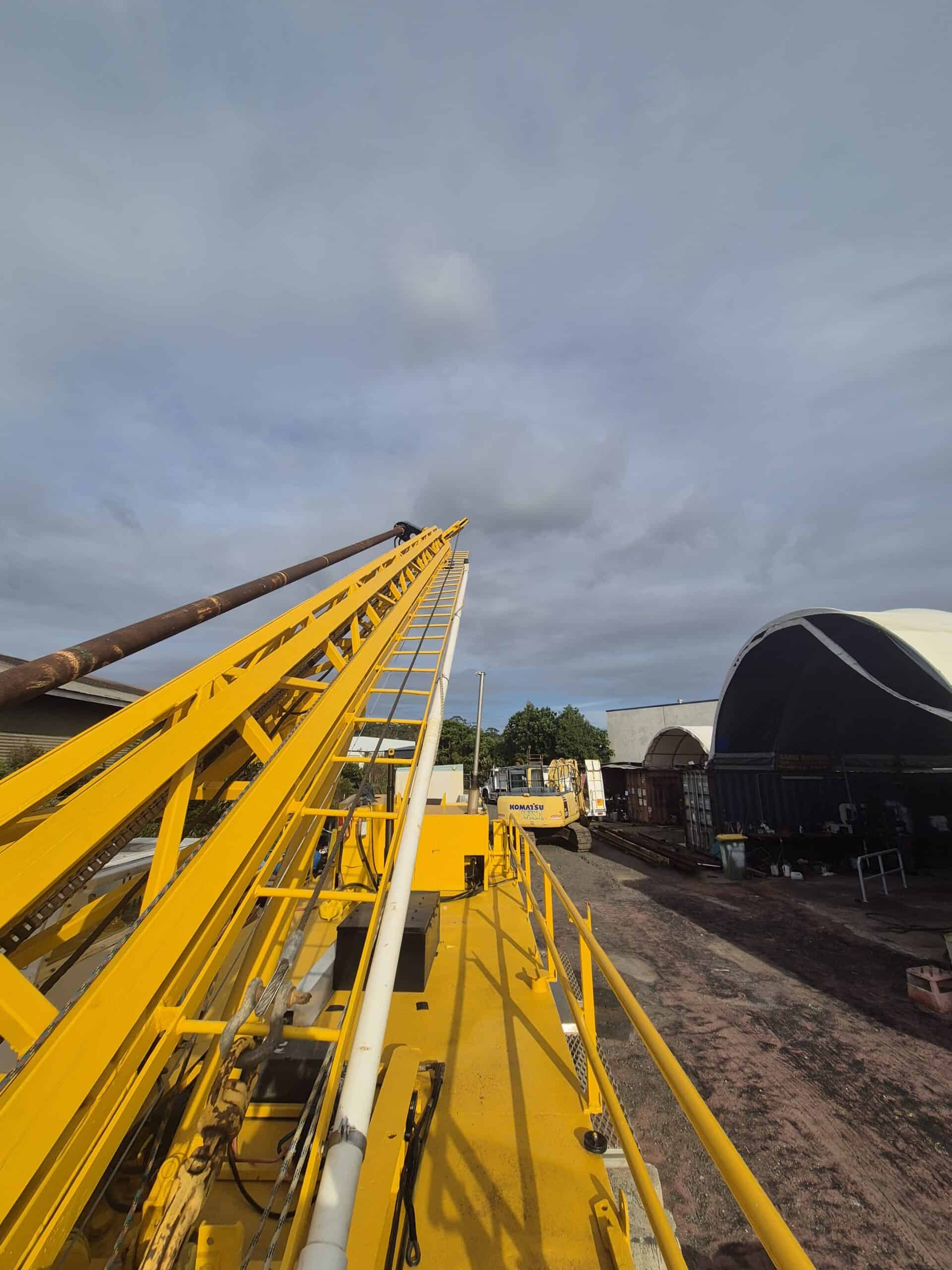

The mast folds neatly into a transport cradle, allowing safe road transport and low bridge clearance movement.
Yes. The mast folds into a transport cradle and the system is designed for efficient road transport and low-clearance access.

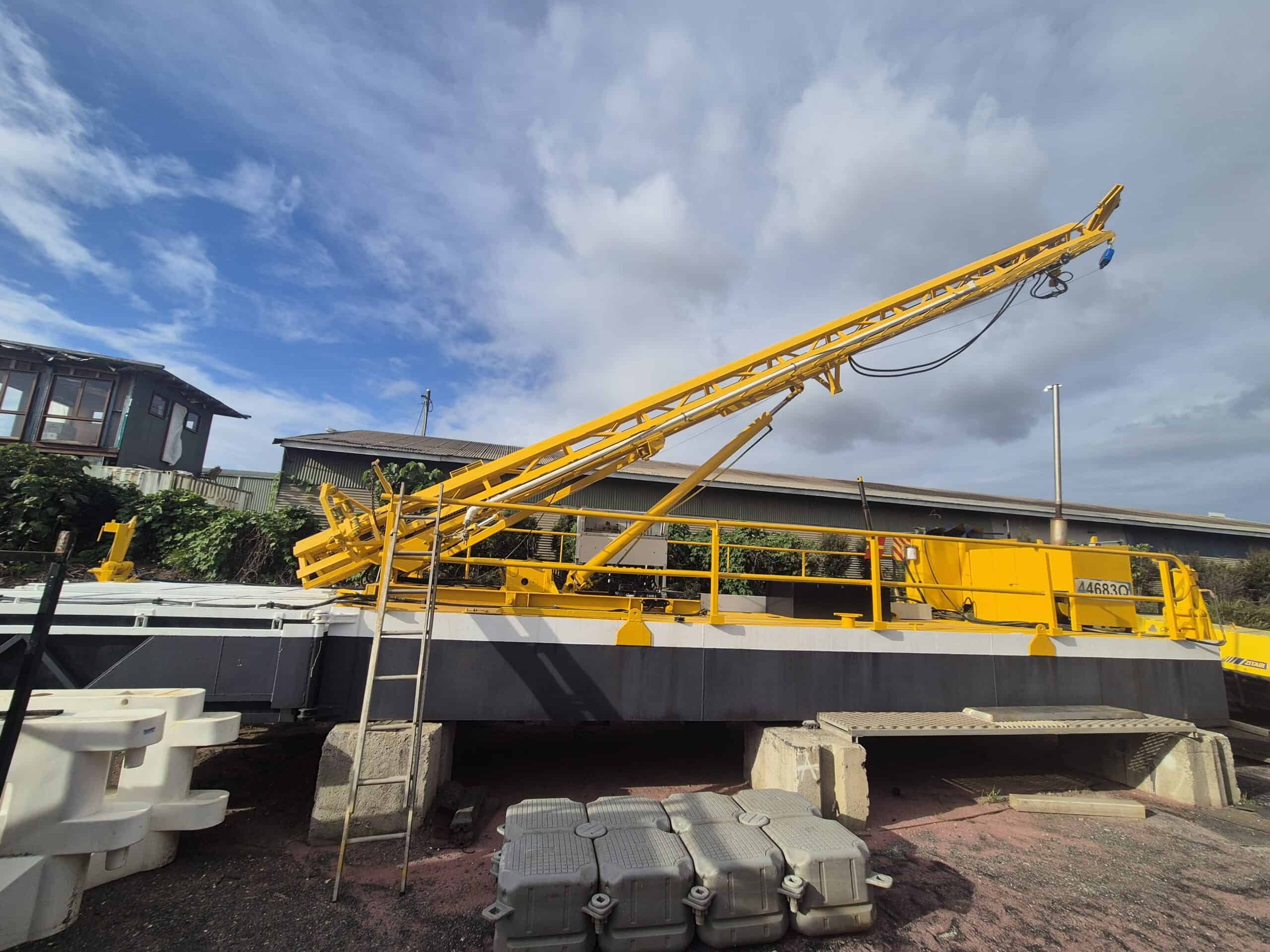

The package includes a Digga PD10 auger drive, augers from 300mm–600mm, a 1-tonne piling hammer, hydraulic winch, and integrated jetting systems.
Ideal for jetty construction, pontoon works, marina infrastructure, and restricted-access marine piling operations.
Yes. Training can be provided on request.
