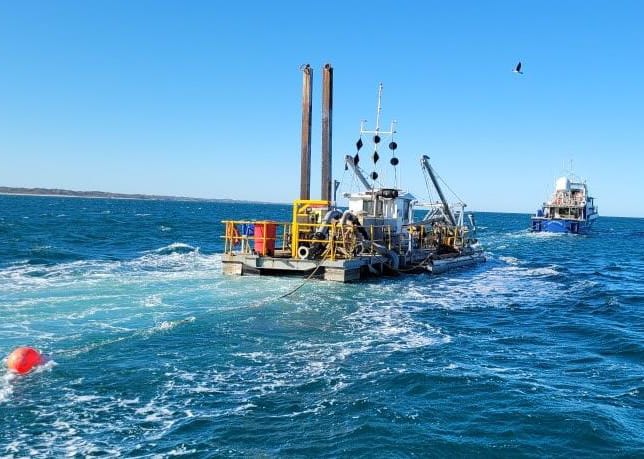

It is not self-propelled. Has twin variable speed slurry pumps installed in series, often saving the need for installation of a booster pump into the discharge pipeline.
The vessel was completely re-fitted in 2014 during which the whole power system, electrical system, positioning system and the hydraulic systems were completely exchanged with the latest in in technologies.
Other upgrades were done to the engine room, filtration systems, exhausts (changed to water cooled), floating lines, keel coolers and others.
The quietness of this dredge allows it to work in sensitive areas.
Vessel survey: class is 2E.
Cutter Dredge Dim’s: 21 metres long by 4.2m beam. It also has 2x 1.0m wide clip-on side pontoons for added stability in swell affected areas.
Displacement:36 to 39 tonnes with options.
Digging Depth: Up to 7.0 metres below water level.
Power Scania: DI 13 368kW Marine Diesel.
Deck Pump: Warman 8” Series G dredge pump with hydrostatic drive.
Ladder Pump: Warman 8” Series G dredge pump with hydrostatic drive mechanically sealed for underwater operation.
Pump Power: 80 metres pressure head at the discharge pipe and 350 kl / hour.
Pipeline: 200mm (8”) diameter discharge diameter.
Hull Length: 16 metres.
Overall Length: 21.0 meters with ladder elevated.
Hull Width: 4.2 meters without clip-on side pontoons fitted.
Controls: Electric, hydraulic and mechanical.
Survey: In survey Department of Transport. M & H 4646.
Cutter: Hydraulic cutter 30kw bucket wheel. Replaceable cutting edges and teeth. A reverse cutter wheel is included with adapter kit.
Weed Technology: This dredge has been fitted with optional CGC proprietary weed dredging technologies.
Anchor: Booms Fitted, Dredge sets its own anchors where required.
Spud System Fitted: Main spud travels hydraulically (2.5 metres). Modern lifting and lowering mechanism.
Stern Winch: Optional stern winch, for optional all wire operation where spuds cannot be used.
Engine Room: Houses Scania diesel power plant, hydraulic pumps, filtration and controls. Fully enclosed with fan for ventilation. Insulated against fire and noise. Water cooled exhaust system built into the hull.
Electrical: 12V DC, 24V DC, and 240V AC is available on board. Circuit breakers and earth leakage protection is fitted.
Lighting :1000 watts external LED lighting floods are fitted.
Flow measure A magnetic flowmeter is fitted; this gives pipeline flow rate information.
Positioning: The dredge has a Trimble DGPS positioning system fitted which displays dredge cuts and line & level information to the operator, mobiles and back to the office.
Ancillary Equipment (Accompanies dredge ‘Swan V’ if required)
Pipeline
5 ½ racks of pipeline in poly HDPE dredge pipe in total is currently available. Approx. 1,600m of this is Class 12.5 (high pressure) 250mm (8” bore) and another (to be confirmed) XX,000m secondary HDPE pipe is available for boosting in lower pressure locations.
Floating Pipelines
8 off 6m X 200mm dia. stainless floating lines, flexible hoses and poly pipelines are included.
Available at Extra Cost
